Model: EW-PI240W-48

240W 48V DIN-Rail Industrial Power Supply

48V DC nominal output; up to 5A / 240W
Wide-range AC or DC input
Adjustable output with protective functions

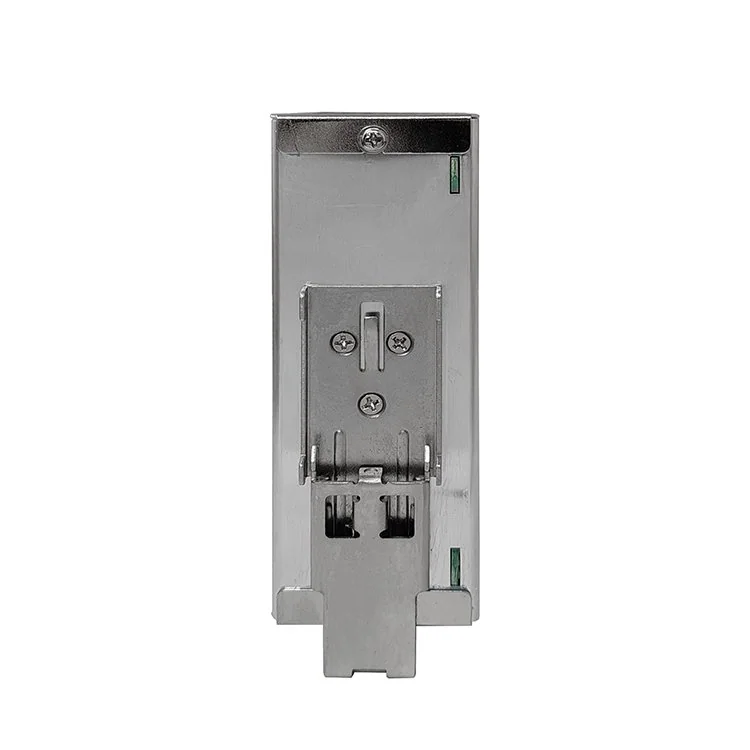

45mm-wide DIN-rail housing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PI240W-48 supplies nominal 48V DC at up to 5A for industrial networking and automation equipment. The 240W DIN-rail unit has adjustable output, a metal enclosure and overload, short-circuit, overvoltage and thermal protection.

240W output

Nominal 48V DC with up to 5A output current.

DIN-rail installation

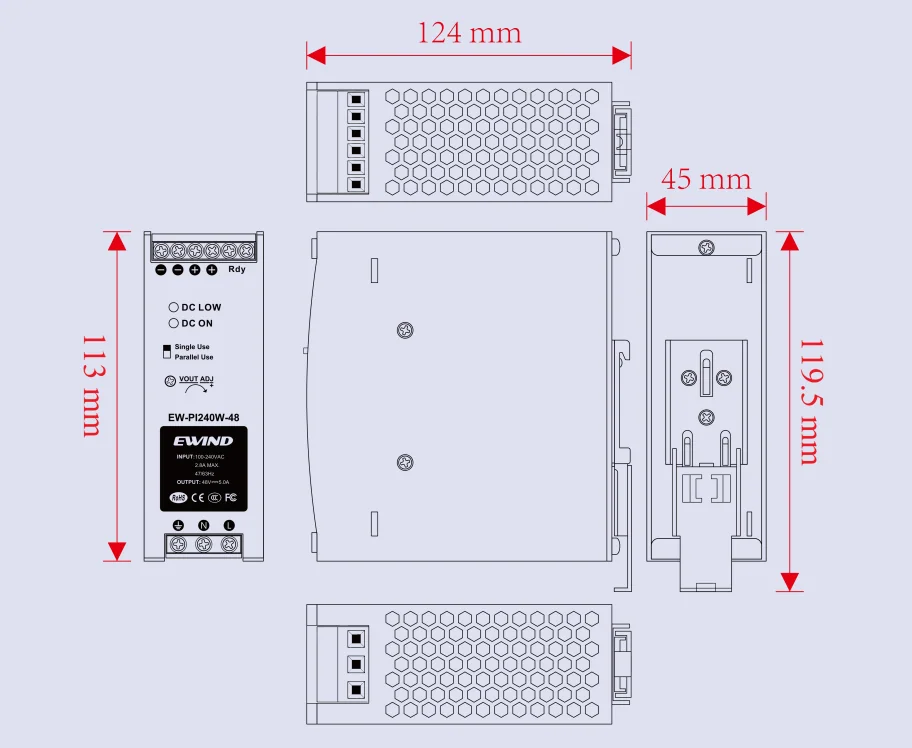

Metal enclosure measuring 45 × 113 × 124mm.

Power protection

Short-circuit, overload, overvoltage and thermal protection.

Product technical specifications
Specification	Details
Rated output	48V DC; 0–5A
Maximum rated power	240W
Input range	90–264V AC or 120–370V DC
Input frequency	47–63Hz
Efficiency	≥90% at 115V AC; ≥91% at 230V AC
Line / load regulation	±0.5% / ±1%
Full-load temperature range	−30°C to +40°C; derating above +40°C
Dimensions	45 × 113 × 124mm
Weight	0.8kg
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Load derating

The datasheet curve shows 100% load through +40°C, decreasing to 50% at +70°C. It also shows 80% load at 90V AC and 100% from 100V AC. Select operating load using both temperature and input-voltage limits.

Output behavior

Adjustable DC output. Ripple/noise peak ≤100mV under the stated 20MHz measurement method with 0.1µF and 47µF capacitors. Start time <2 seconds at nominal input and full load; hold time >20ms at 115V AC and >115ms at 230V AC.

Power protection

Built-in short-circuit, overload, overcurrent, overvoltage and overtemperature protection. Recovery behavior depends on the protection condition; refer to the datasheet for the applicable limits.

Terminals and environment

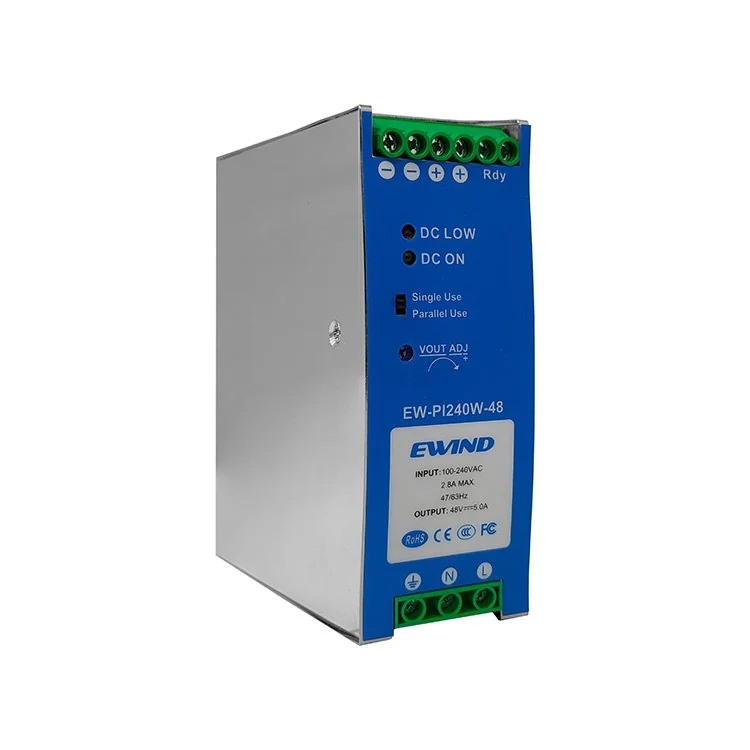

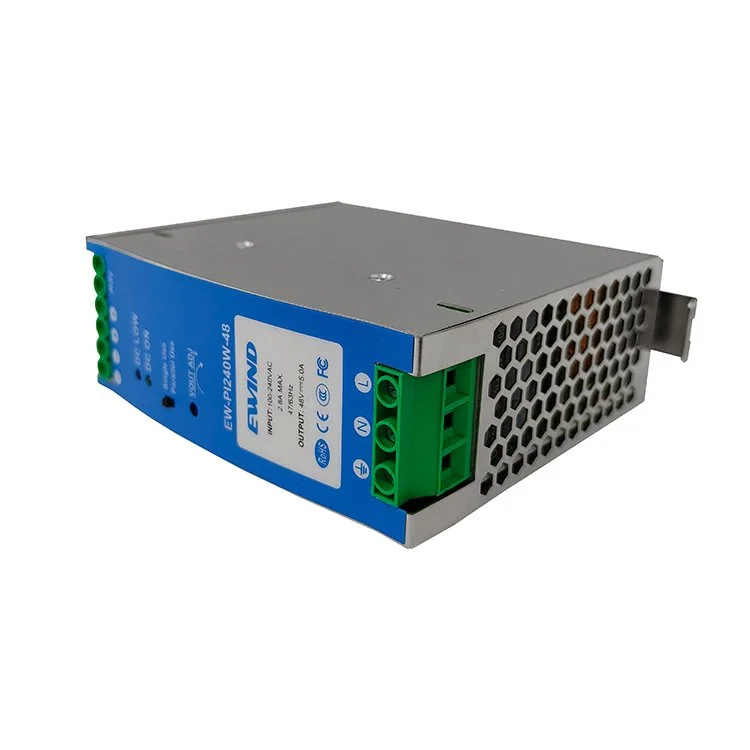

TB1 connects protective earth, AC neutral/DC negative and AC line/DC positive. TB2 provides DC −V and +V outputs. Operating humidity: 20–95%; storage: −40°C to +85°C and 10–95% RH, non-condensing. Listed altitude: 2000m.
