Gigabit fiber access
Connect two copper devices to the fiber network through a selected SFP or SC configuration.
Model: EW-IS1803
3-Port Gigabit Industrial Ethernet Switch with Fiber Uplink
- 2 Gigabit RJ45 data ports + 1 fiber uplink
- 100/1000Mbps fiber; SFP or SC configuration
- Redundant 48–57V DC power inputs
- IP40 enclosure; 5-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-IS1803 provides two Gigabit RJ45 data ports and one 100/1000Mbps fiber uplink. The unmanaged industrial switch supports redundant 48–57V DC inputs, 35 mm DIN-rail mounting and operation from −40°C to +85°C.

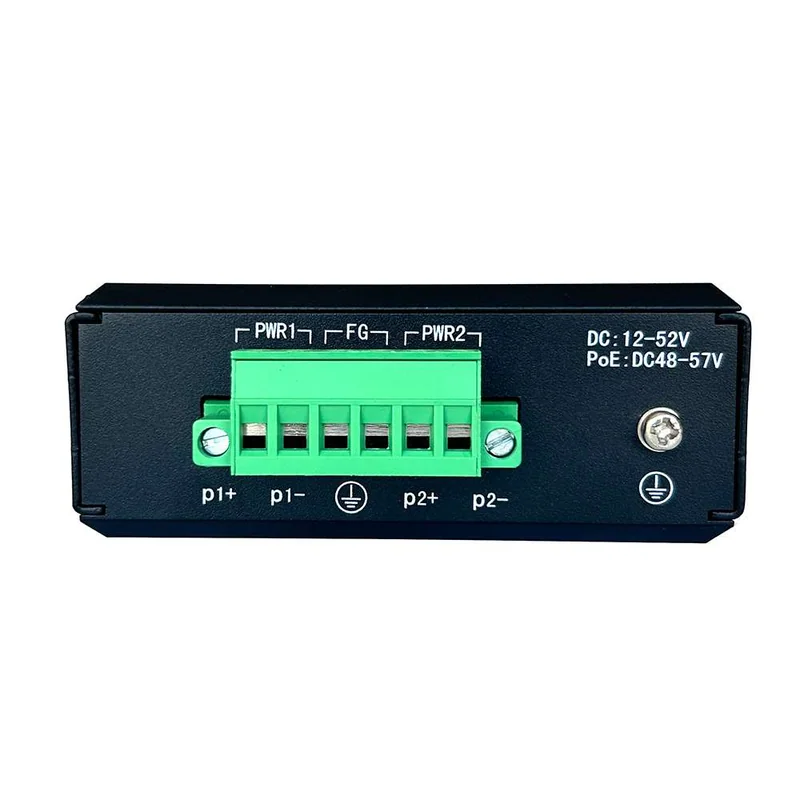

Redundant DC connection
Dual power inputs include reverse-polarity protection and use an external supply.

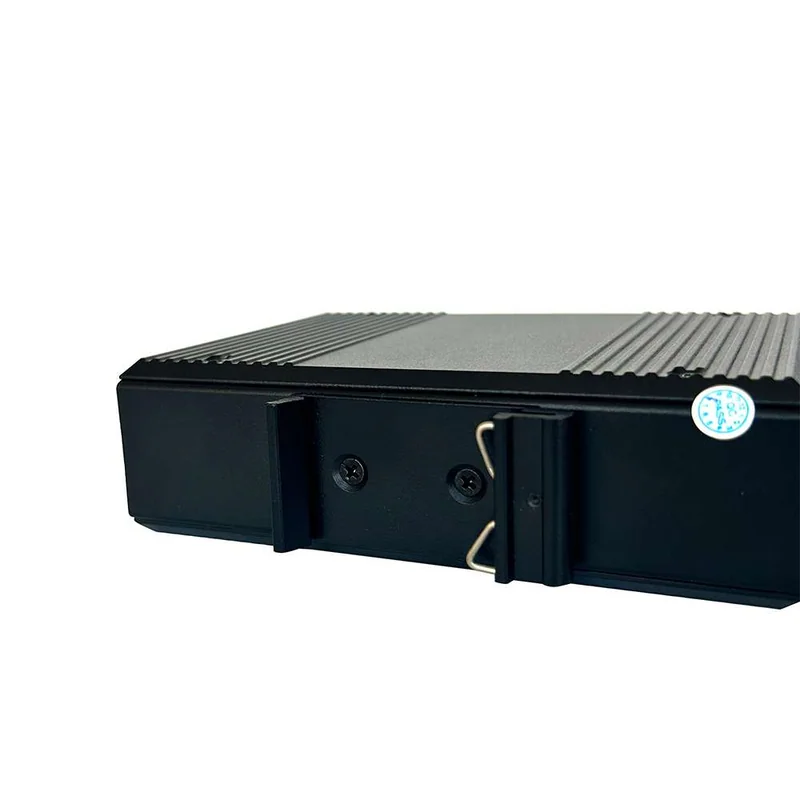

Industrial installation
A 118 × 86 × 39 mm enclosure fits desktop and 35 mm DIN-rail installations.
| Specification | Details |
|---|---|
| Model | EW-IS1803 |
| Copper ports | 2 × 10/100/1000BASE-T RJ45; data ports |
| Fiber uplink | 1 × 100/1000Mbps; SFP or SC configuration |
| Management | Unmanaged |
| Switching capacity | 6Gbps |
| Forwarding rate | 4.46Mpps |
| MAC table | 4K entries |
| Power input | DC 48–57V; redundant six-pin terminal |
| Dimensions | 118 × 86 × 39 mm |
| Enclosure / mounting | IP40; desktop or 35 mm DIN rail |
| Operating temperature | −40°C to +85°C |
| Warranty | 5 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-IS1803 industrial fiber switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-IS1803 Resources
PDF · Specifications · Installation · Ordering
