Model: EW-IS1802

2-Port Gigabit Unmanaged Industrial Ethernet Switch

1 × Gigabit RJ45 data/PoE port
1 × 100/1000Mbps SFP/SC fiber slot
Redundant 12–48V DC Phoenix-terminal input
−40°C to +80°C operation; IP40 DIN rail

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

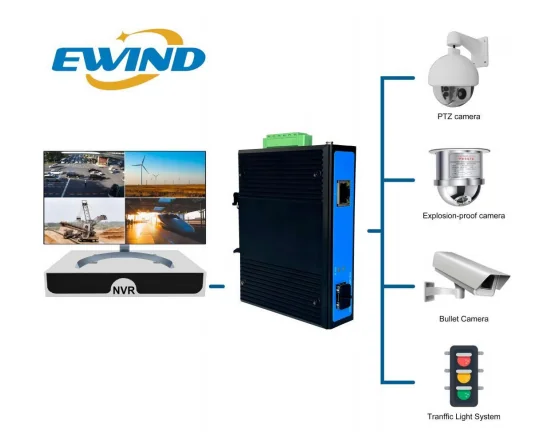

EW-IS1802 combines one 10/100/1000Mbps RJ45 data/PoE port with one 100/1000Mbps SFP/SC fiber slot. Its redundant 12–48V DC input, fanless industrial housing and DIN-rail installation support harsh transport, power, mining and automation environments.

Copper and fiber

Gigabit RJ45 access plus SFP/SC fiber uplink.

Redundant DC input

Dual 6-pin industrial terminals with reverse-polarity protection.

Industrial enclosure

Fanless IP40 housing for DIN-rail or desktop installation.

Long fiber reach

Module-dependent multimode and single-mode distances.

Product technical specifications
Specification	Details
Copper port	1 × 10/100/1000BASE-T data/PoE
Fiber port	1 × 100/1000BASE-X SFP/SC
Management	Unmanaged
Switching capacity	8Gbps
Forwarding rate	2.98Mpps at 64-byte packets
MAC address table	1K entries
Power input	12–48V DC; dual 6-pin Phoenix terminals
Power supply	Not included; optional 48V/24W or 48V/36W industrial supply

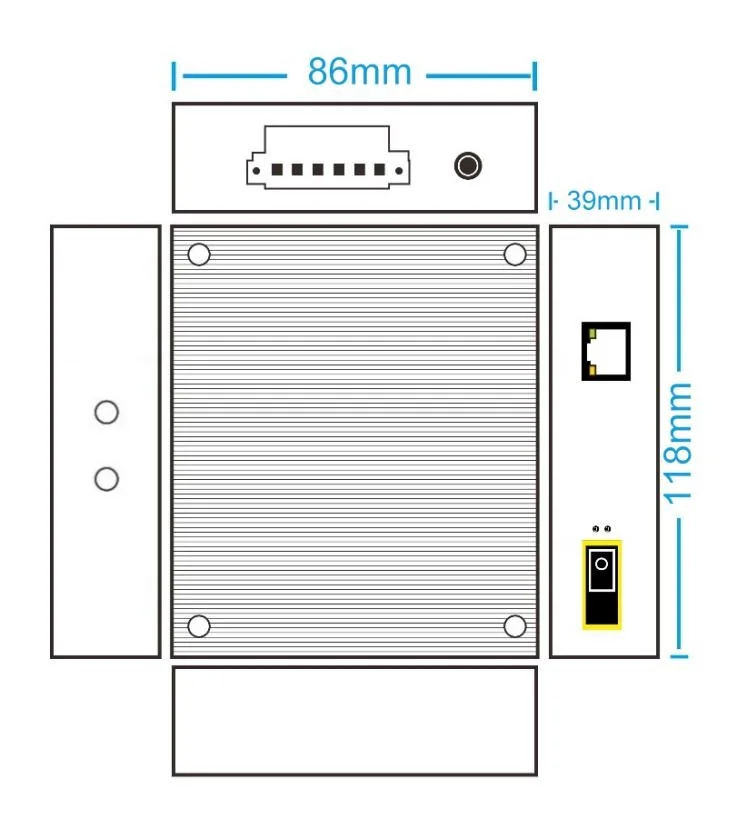

Dimensions (L × W × H)	118 × 86 × 39mm
Installation / protection	Desktop or 35mm DIN rail; IP40
Operating temperature	−40°C to +80°C
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Ethernet and fiber

The RJ45 port auto-negotiates 10/100/1000Mbps with MDI/MDIX. The SFP/SC slot accepts separately selected modules; listed reference reaches are multimode 850nm up to 550m, single-mode 1310nm up to 40km and 1550nm up to 120km, depending on the module.

Power and PoE

The source labels port 1 as a PoE port but does not state an IEEE PoE standard or a per-port output budget. Treat the PoE function as configuration-dependent and confirm the supplied power and connected device requirements before deployment.

Industrial environment

Operating humidity: 5–90%, non-condensing. Storage: −40°C to +125°C and 5–95% RH. IP40 protection, 6kV lightning rating and reverse-polarity protection are listed.

Protection and maintenance

The source lists ESD, EFT, surge, RF, magnetic-field and vibration/shock/free-fall test references. LEDs indicate power and link/activity; operation is plug-and-play without configuration.
