Model: EW-PD111G-AF

Gigabit PoE Splitter with Selectable 12V or 5V Output

10/100/1000Mbps Ethernet data connection
Selectable 12V or 5V DC output
LT PoE and IEEE 802.3af input compatibility
80 × 76 × 25mm fanless housing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PD111G-AF separates Gigabit PoE into Ethernet data and selectable 12V or 5V DC power. It supports LT PoE and IEEE 802.3af inputs, providing a compact connection for network devices that use separate Ethernet and DC power sockets.

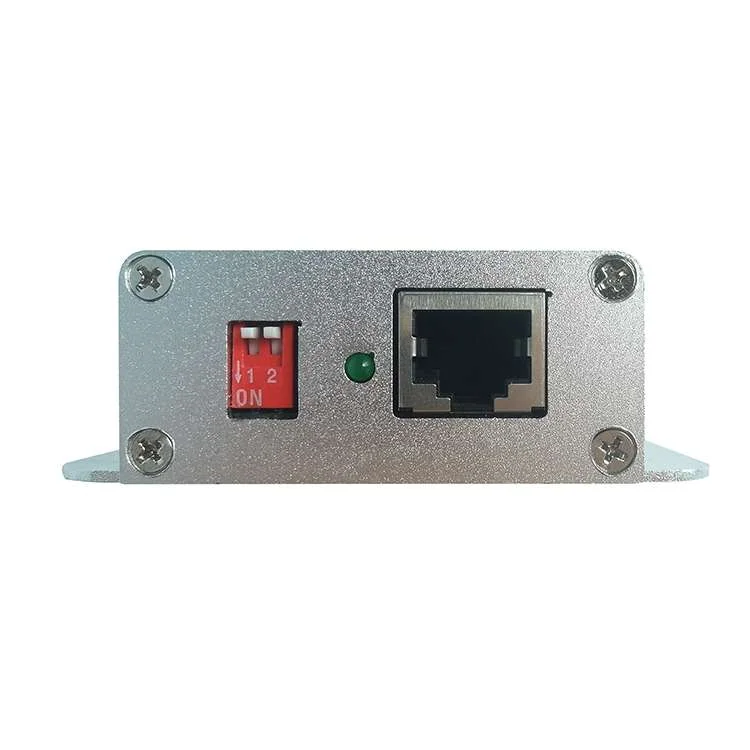

12V / 5V selection

Set the output voltage to match the connected device.

Gigabit breakout

Separate the Ethernet data path from the incoming PoE power.

Protected operation

Thermal protection and ESD-protected network ports are included.

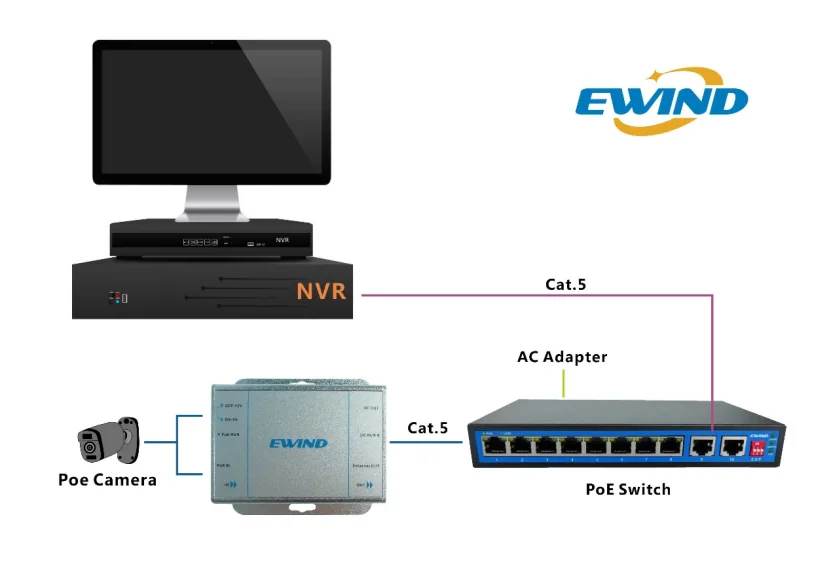

Legacy endpoints

Supply compatible cameras or other devices without integrated PoE.

Product technical specifications
Specification	Details

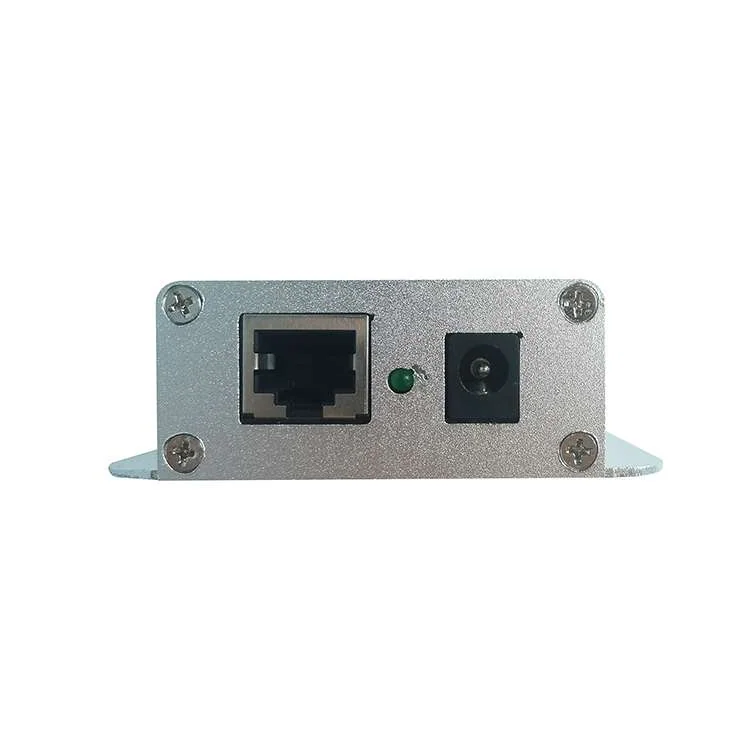

Connections	RJ45 PoE input; RJ45 data output; DC power output
Ethernet speed	10/100/1000Mbps
Input voltage	56V
Output voltage	Selectable 12V or 5V DC
Output power	Up to 15.4W with a compatible high-power source; reduced output with IEEE 802.3af PSE
PoE compatibility	LT PoE; IEEE 802.3af

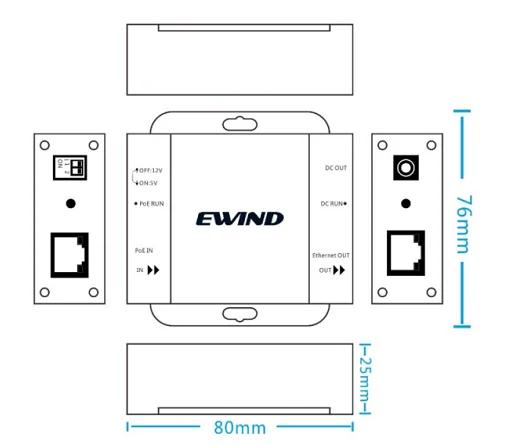

Dimensions / mounting	80 × 76 × 25mm; desktop or wall mounted
Operating environment	0°C to +55°C; 10%–90% RH, non-condensing
Warranty	3 years
