Model: EW-10GSFP-SR

10G Fiber Media Converter

10G/5G/2.5G/1G/100M RJ45 copper interface plus a 10GBASE-X SFP+ fiber interface
20Gbps fabric and 2.48Mpps forwarding for 10Gbps Ethernet media conversion
10GBASE-LR/SR/BX fiber support, with source-listed reaches up to 300m multimode or 80km single-mode
Store-and-forward operation with 9K MAC entries and 16K jumbo frames

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-10GSFP-SR provides a simple fiber-to-copper bridge for 10Gbps Ethernet. Its RJ45 port accepts 10G, 5G, 2.5G, 1G and 100M links, while the SFP+ interface supports long-distance fiber runs for backbone, data center and telecommunications-room deployments.

Copper to fiber

Converts 10G Ethernet between the RJ45 copper port and a 10GBASE-X SFP+ interface.

20Gbps fabric

Store-and-forward switching delivers up to 2.48Mpps at 64-byte packets.

Long-distance links

Source-listed 10G fiber reaches extend to 300m multimode or 80km single-mode.

Compact deployment

Metal enclosure, 6KV DC ESD protection and desktop, wall or chassis installation.

Product technical specifications
Specification	Details

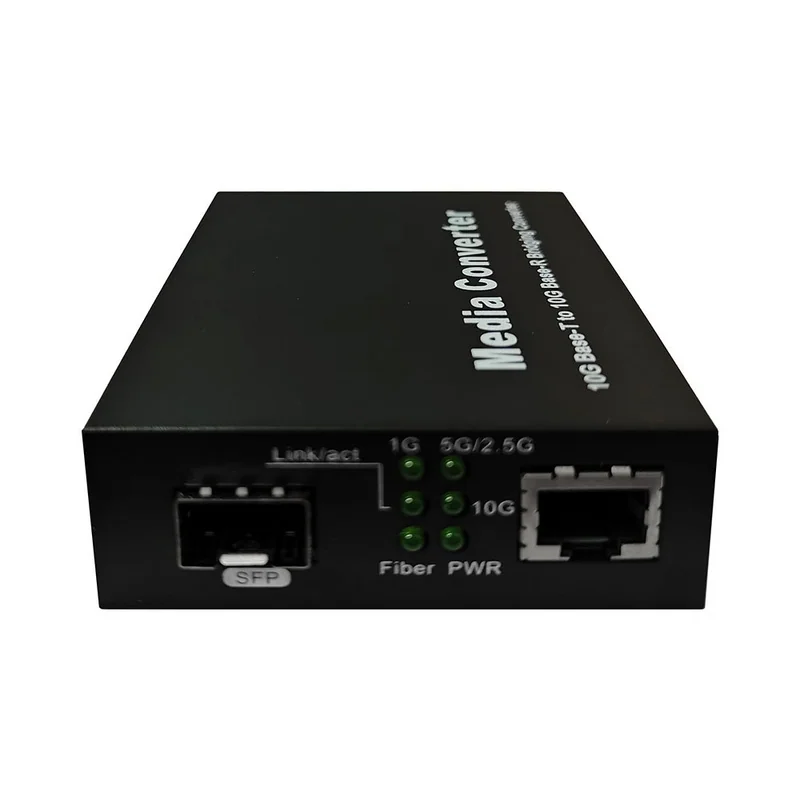

Interfaces	1 x 10G/5G/2.5G/1G/100BASE-T RJ45 with Auto-MDI/MDI-X and auto-negotiation; 1 x 10GBASE-X R SFP+ interface
Switching	Store-and-forward; 20Gbps fabric; 2.48Mpps throughput at 64-byte packets
Address table	9K entries with automatic source-address learning and aging
Jumbo frame	16K
Flow control	Back pressure for half duplex; IEEE 802.3x pause frame for full duplex

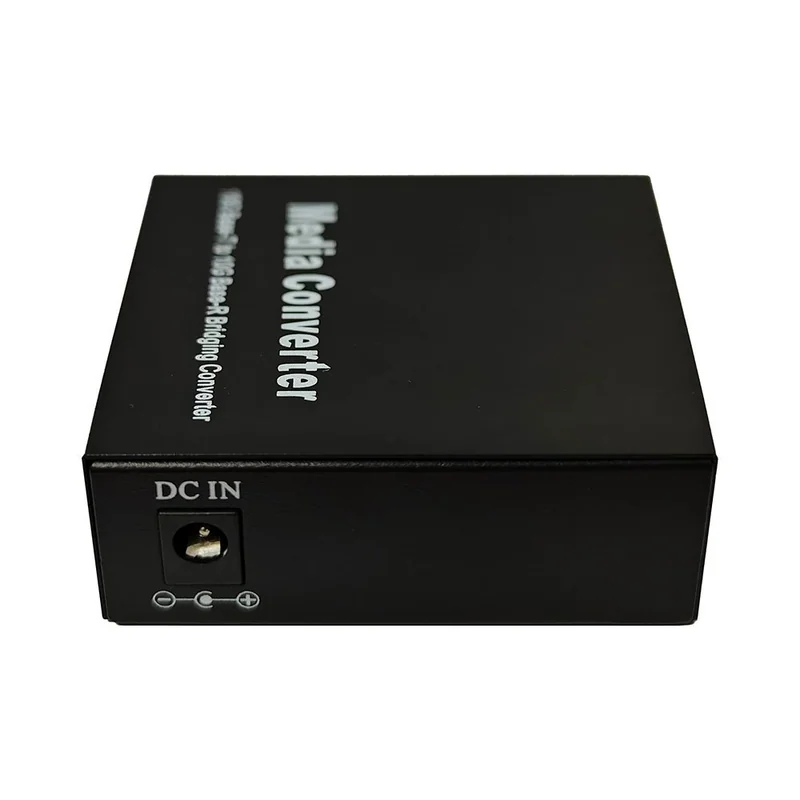

Power	12V 1A; 3.75 watts / 12.8 BTU per hour maximum
Mechanical	Compact-sized metal case; 95 x 78 x 23mm; 0.8KGS
Installation	Desktop, wall mountable or media converter chassis installation
Environment	Operating 0 ~ 50 degrees C; storage 0 ~ 70 degrees C; 5 ~ 95% relative humidity, non-condensing

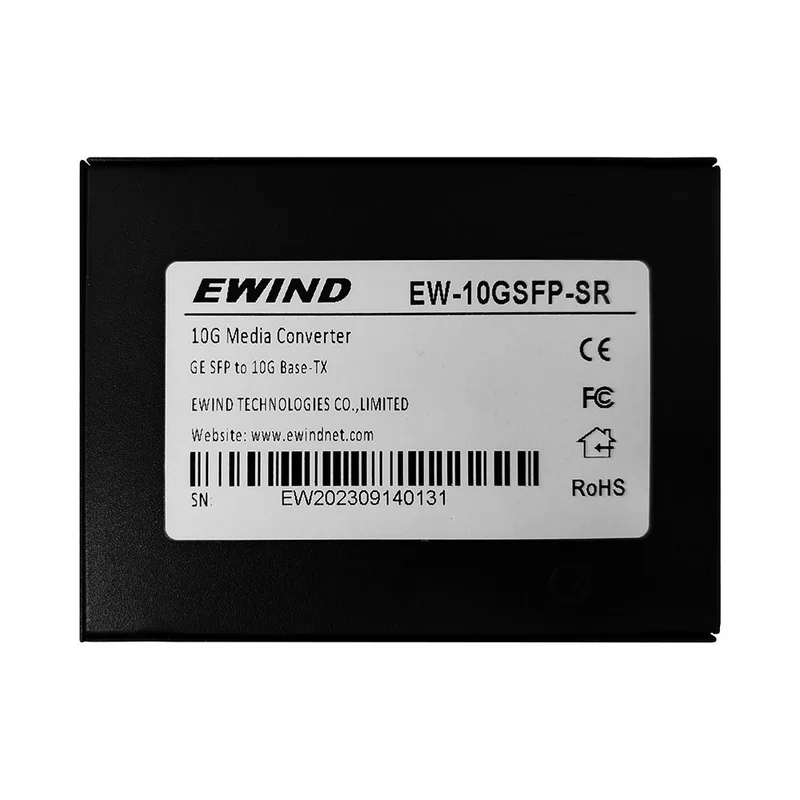

Compliance	FCC Part 15 Class A, CE; IEEE 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3ae and 802.3x
Warranty	1-year warranty

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber reach and cabling

The source lists 10GBASE-LR/SR/BX support with 50/125μm or 62.5/125μm multimode fiber up to 300m, and 9/125μm single-mode fiber up to 80km. For copper, the source specifies Cat 6A/Cat 7 for 10G, Cat 6/Cat 6A/Cat 7 for 5G, and Cat 5e or better for 1G/2.5G.

Diagnostics and management

Source-listed functions include SFP+ DMI, loop-back testing, economic in-band management, network management options, full-state LED display and UTP cable-length detection on the RJ45 interface.

Deployment options

The compact metal unit supports desktop and wall-mount use. The source also lists media converter chassis installation, 2U rack use with 16-channel chassis and hot plugging.

Protection and operation

The converter uses store-and-forward processing, 6KV DC ESD protection and full-duplex flow control. Operating humidity is 5 ~ 95% relative humidity, non-condensing.
