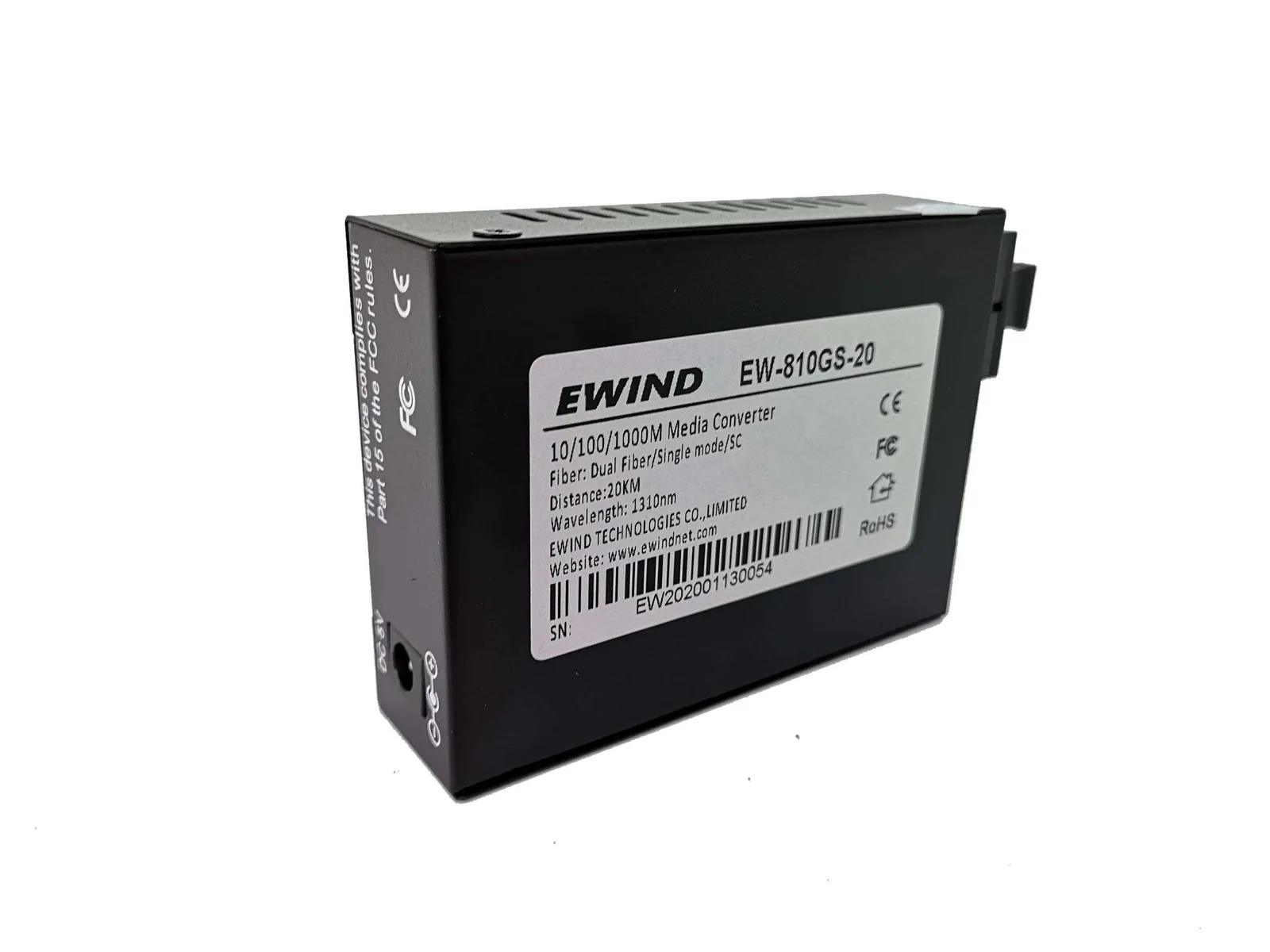

Model: EW-810GS-20

10/100/1000M Single-Mode Dual-Fiber Media Converter

10/100/1000Mbps full-duplex operation on both TX and FX ports

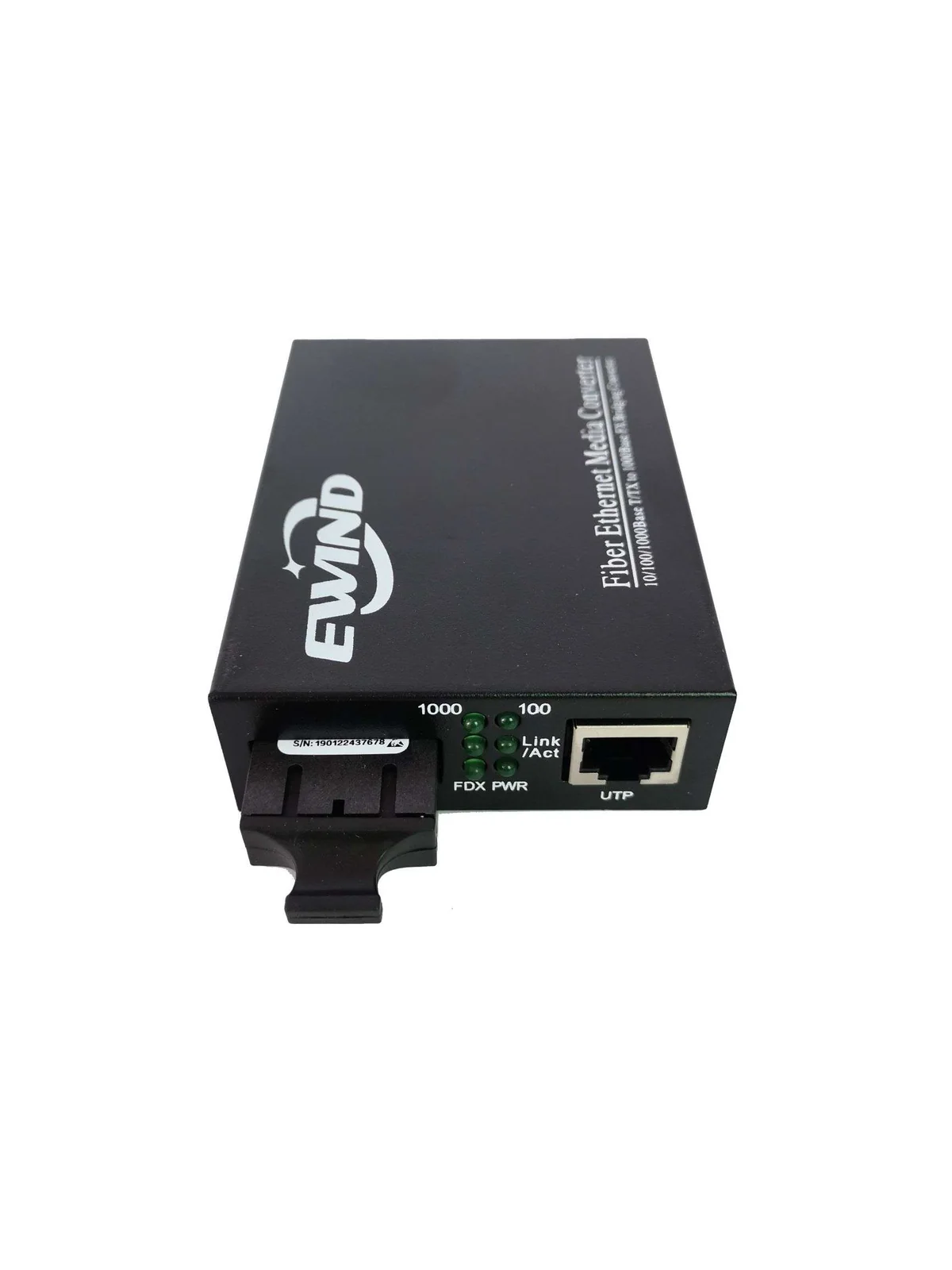

One RJ45 port and one dual-fiber SC port with Auto MDI/MDIX on the TX port
Single-mode fiber distance up to 20km in the source technical data
Force/Auto transfer mode, link indicators and less than 3W power consumption

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-810GS-20 provides a Gigabit Ethernet-to-single-mode fiber bridge with 10/100/1000Mbps RJ45 support, dual-fiber SC connectivity and source-listed reach up to 20km. Auto MDI/MDIX and Force/Auto FX mode keep installation straightforward.

Gigabit conversion

One RJ45 port and one dual-fiber SC port bridge copper and optical Ethernet.

10/100/1000Mbps

Full-duplex operation supports Gigabit Ethernet on both TX and FX ports.

Up to 20km

Single-mode fiber extends remote links up to the source-listed distance.

Flexible installation

Auto MDI/MDIX, Force/Auto FX mode, status LEDs and low power draw.

Product technical specifications
Specification	Details
Optical interface	Dual-fiber SC port; single-mode fiber
Copper interface	RJ45; 10/100/1000Mbps; Cat5 or Cat6 cable; Auto MDI/MDIX
Duplex mode	Full duplex on TX and FX; half/full duplex on the RJ45 interface
Fiber distance	Up to 20km for single-mode fiber
Power	Adapter type: DC5V; built-in power type: AC100 ~ 240V
Power consumption	＜3W
Indicators	PWR, FDX, Fiber/RJ45 LINK/ACT, 100M and 1000M indicators
Environment	Operating 0 ~ 50℃; storage −40 ~ 70℃; 5 ~ 95% RH, non-condensing
MTBF	≥10.0000h
Compliance	CE, FCC and RoHS
Warranty	3-year warranty

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber link planning

The converter uses a dual-fiber SC interface for single-mode links. The technical data lists a 20km distance; the application paragraph uses a broader module-dependent reach statement, so confirm the final module before publication.

Copper and transfer modes

The RJ45 port supports 10/100/1000Mbps, Cat5 or Cat6 cable and Auto MDI/MDIX. The FX port can use Force or Auto transfer mode.

Power and form factors

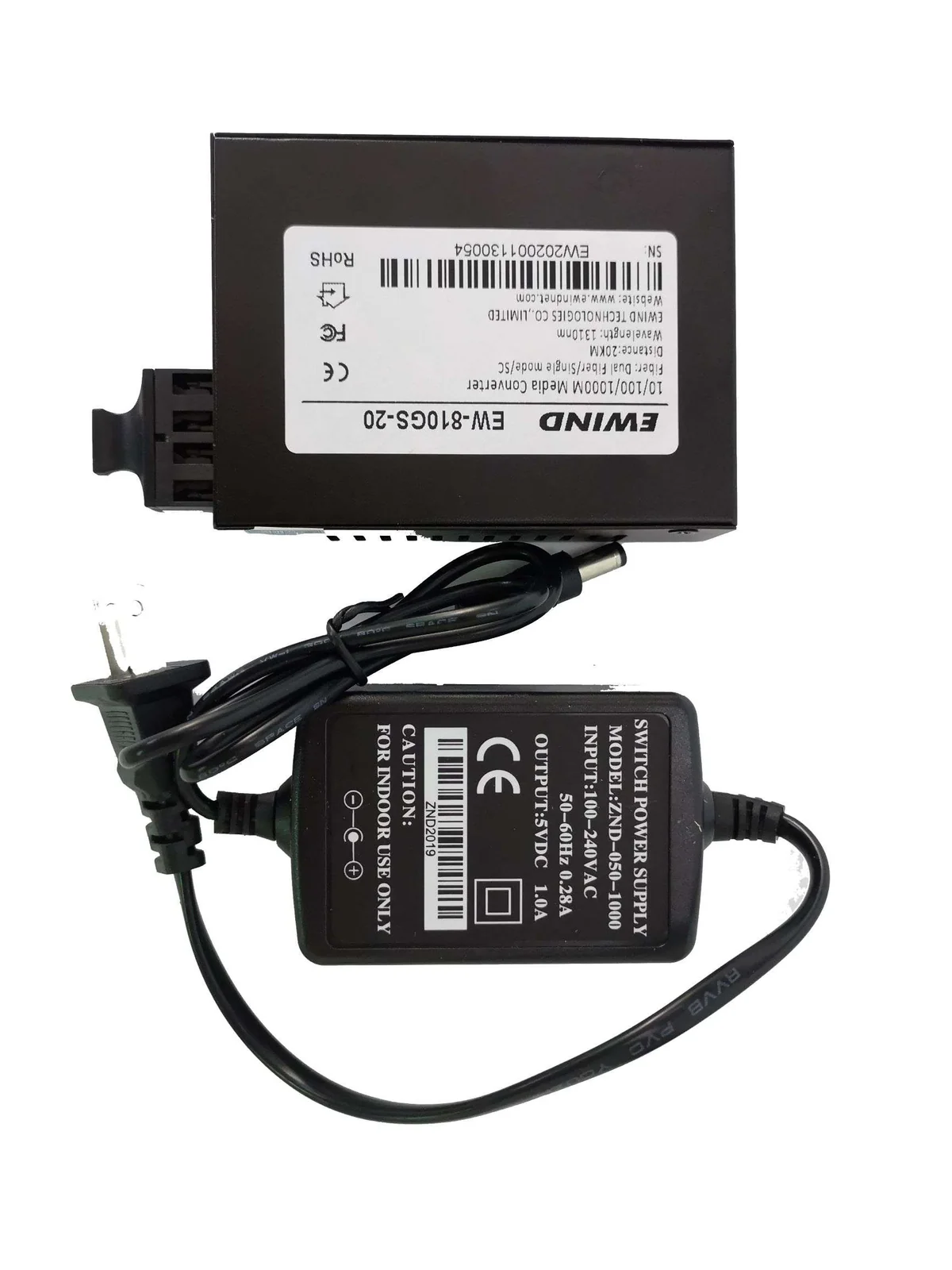

The source documents an adapter version with DC5V input and a built-in version with AC100 ~ 240V input. It lists 0.39kg / 94 x 70.5 x 26.5mm for the adapter version and 0.67kg / 140.5 x 111 x 30cm for the built-in version.

Deployment use

Source-listed applications include extending Ethernet over fiber, connecting subnets to fiber backbones and CCTV surveillance networks.
