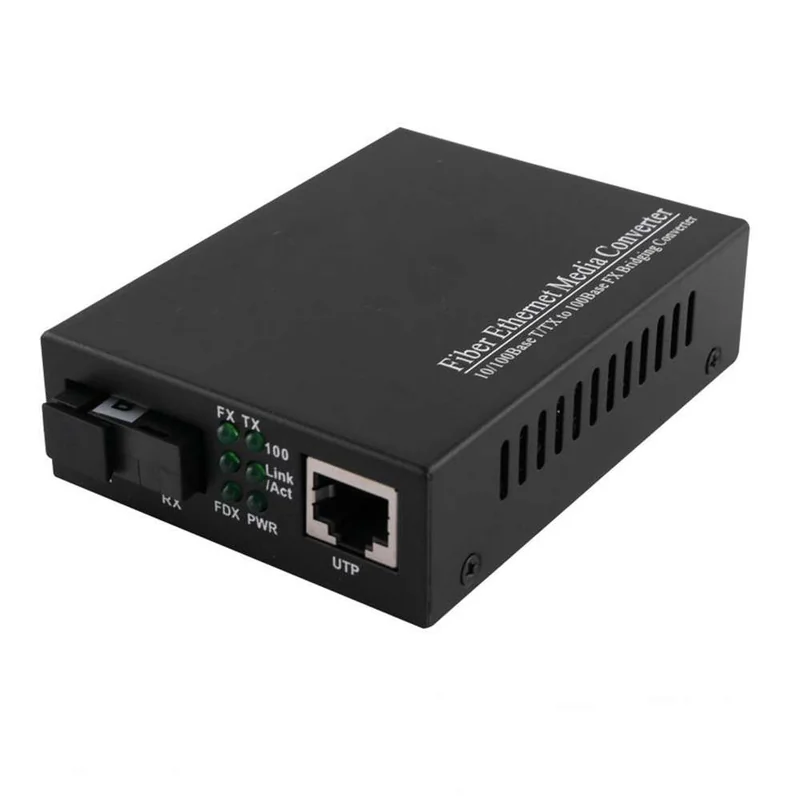

Model: EW-610SM-20A/B

10/100M Single-Fiber Media Converter

10/100Mbps full-duplex operation on both TX and FX ports
One RJ45 port and one single-fiber SC port with Auto MDI/MDIX on the TX port
Single-mode fiber reach up to 20km in the source application and technical data
Force/Auto transfer mode, link indicators and less than 3W power consumption

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-610SM-20A/B provides a compact 10/100M Ethernet-to-single-mode fiber bridge for remote links. Its RJ45 port connects to a single-fiber SC link and extends Ethernet up to 20km for backbones, remote subnets and CCTV networks.

Copper to fiber

One RJ45 port and one single-fiber SC port connect Ethernet nodes to fiber.

10/100Mbps

Full-duplex conversion supports Fast Ethernet on both copper and fiber ports.

Up to 20km

Single-fiber extends remote links up to the source-listed distance.

Easy deployment

Auto MDI/MDIX, Force/Auto FX mode, status LEDs and low power draw.

Product technical specifications
Specification	Details
Optical interface	Dual-fiber SC port; single-mode fiber options documented in the source
Copper interface	RJ45; Auto MDI/MDIX
Data rate	10/100Mbps
Duplex mode	Full duplex on TX and FX; half/full duplex on the RJ45 interface
Fiber reach	Up to 20km in the source application and technical data
Power	Adapter type: DC5V; built-in power type: AC100 ~ 240V
Power consumption	＜3W
Indicators	PWR, FDX, Fiber/RJ45 LINK/ACT, 100M and 1000M indicators as listed in the source
Environment	Operating 0 ~ 50℃; storage −40 ~ 70℃; 5 ~ 95% RH, non-condensing
MTBF	≥10.0000h
Compliance	CE, FCC and RoHS
Warranty	3-year warranty

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber link planning

The converter uses a single-fiber SC interface for single-mode links. The source lists a distance up to 20km for the technical and application data.

Copper and transfer modes

The RJ45 port supports 10/100Mbps and Auto MDI/MDIX. The FX port can use Force or Auto transfer mode.

Power and form factors

The source documents an adapter version with DC5V input and a built-in version with AC100 ~ 240V input. It lists 0.39kg / 94 x 70.5 x 26.5mm for the adapter version and 0.67kg / 140.5 x 111 x 30mm for the built-in version.

Deployment use

Source-listed applications include extending Ethernet to remote nodes over fiber, connecting subnets to fiber backbones and CCTV surveillance security networks.
