10G-ready uplinks
Two multirate SFP slots connect fiber aggregation or high-speed backbones.

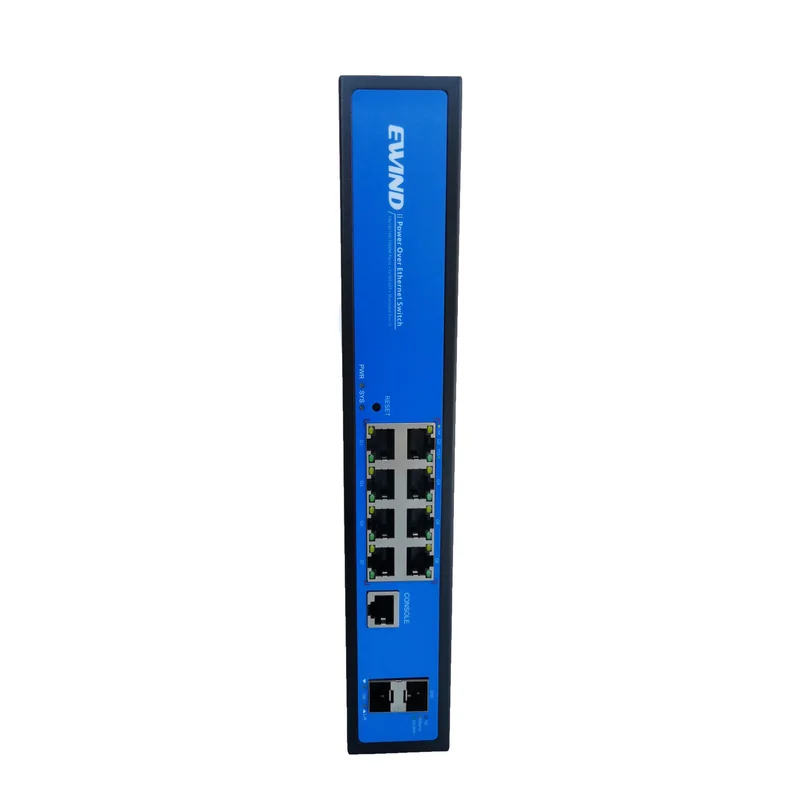

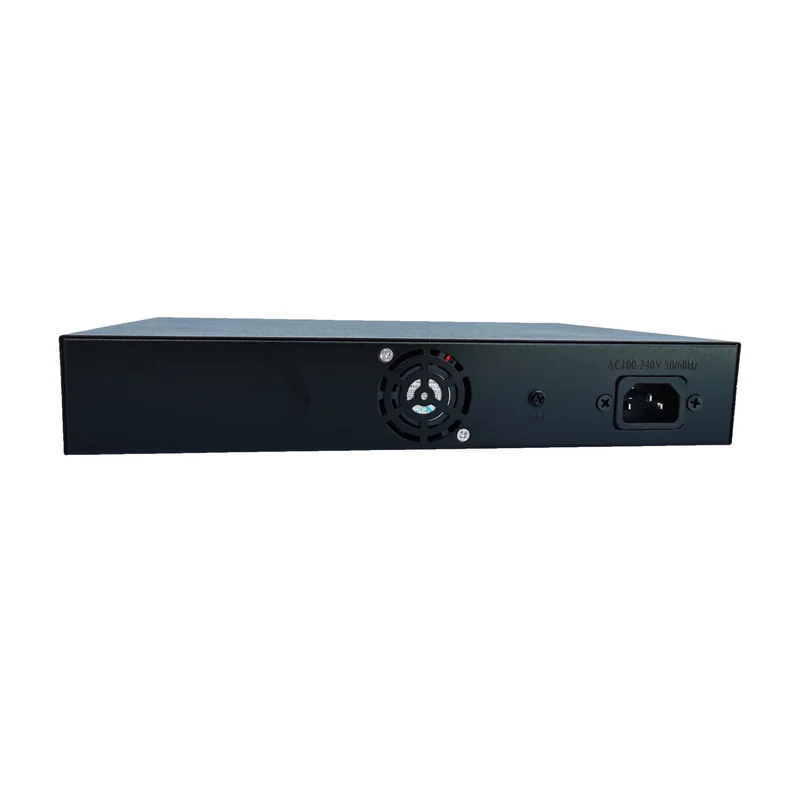

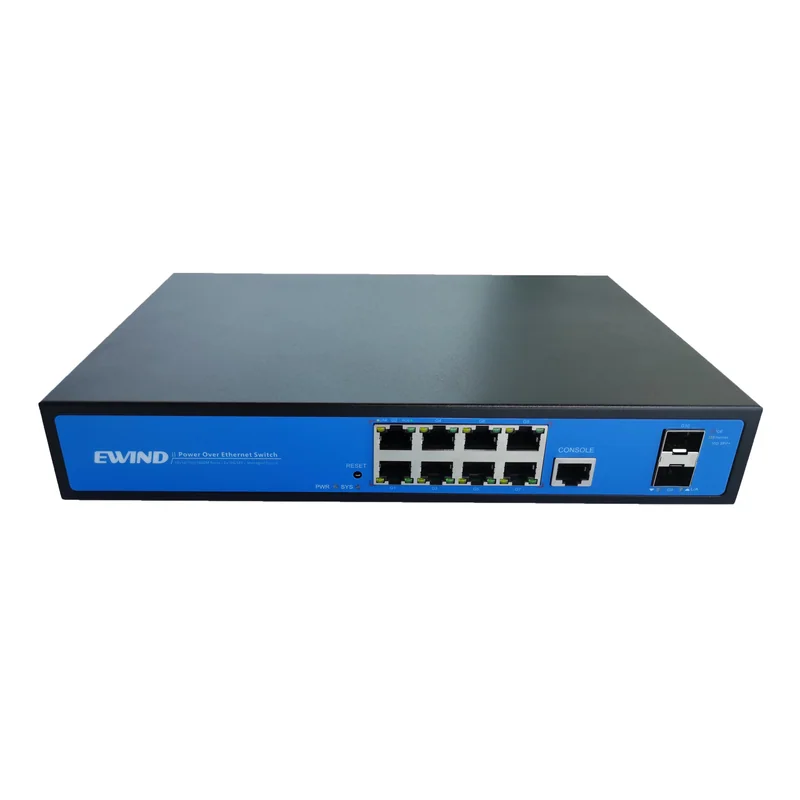

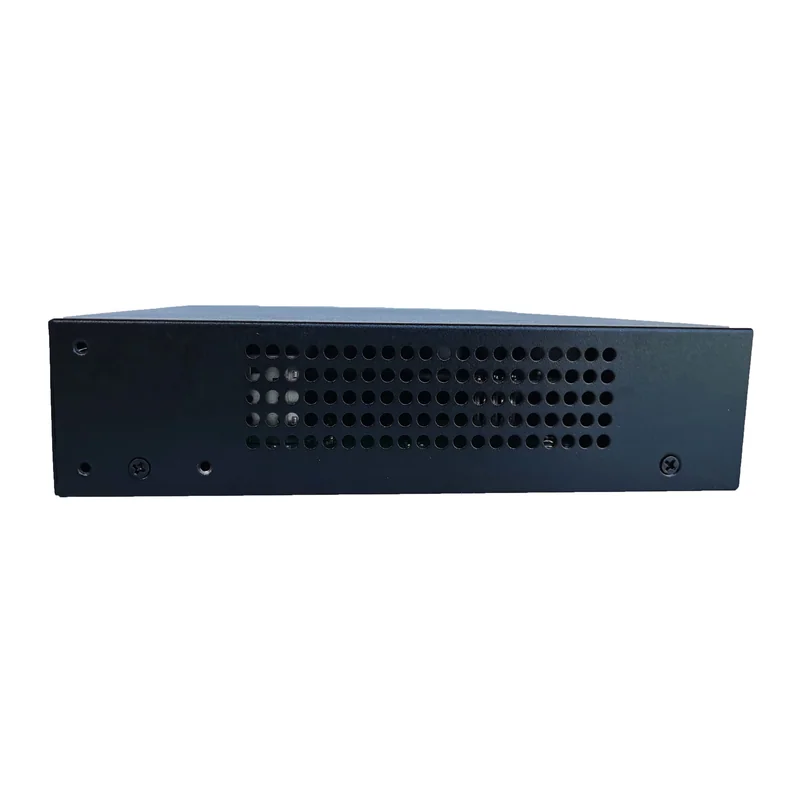

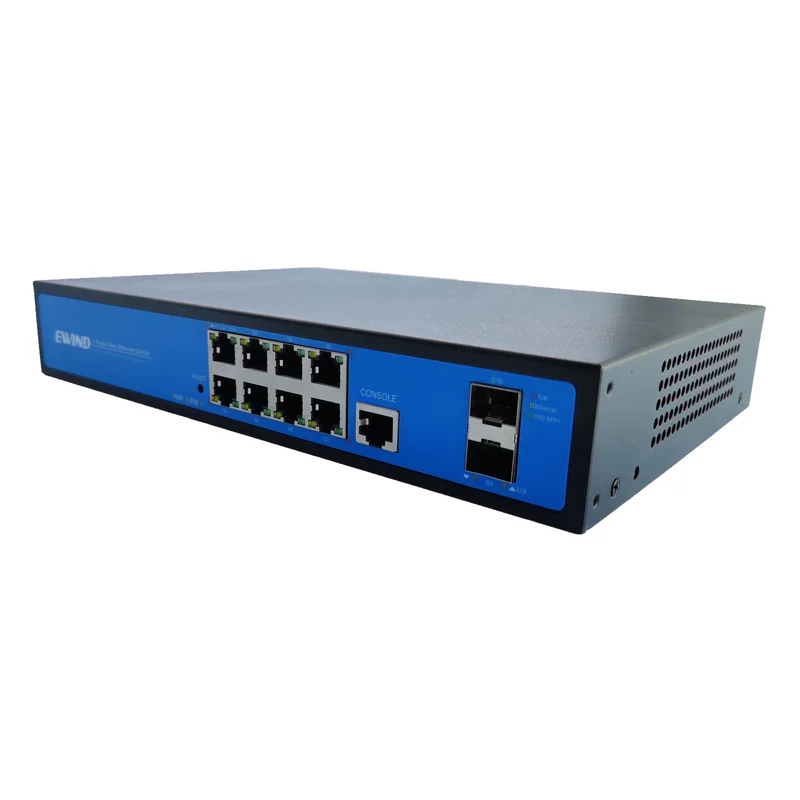

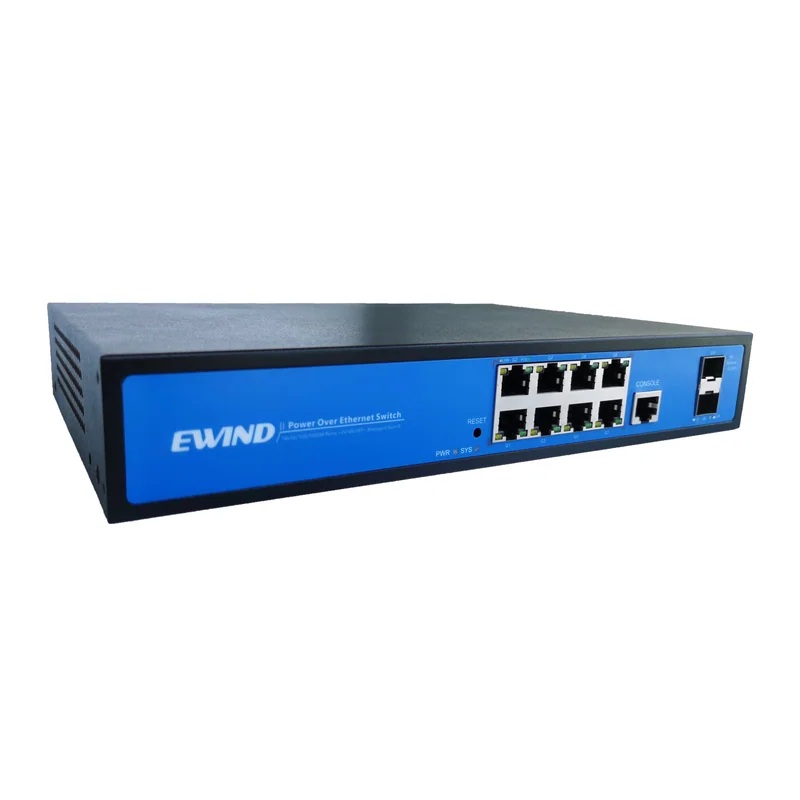

Model: EW-S3910GM-AP
10-Port L2+ Managed Gigabit PoE Switch with 10G SFP Uplinks
- 8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
- 2 × 1G/2.5G/10G SFP uplinks plus RS232 console
- 56Gbps switching capacity and 107.14Mpps forwarding rate
- L2+ routing, VLAN, ERPS ring, QoS, ACL and security controls
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S3910GM-AP is an L2+ managed switch with eight Gigabit PoE ports, two 1G/2.5G/10G SFP uplinks and a console port. VLAN, ERPS, routing, QoS, ACL and secure management functions support converged surveillance and enterprise networks.
Managed PoE
Allocate and schedule PoE per port with priority and status controls.
L2+ resilience
ERPS ring recovery, STP/RSTP/MSTP and static routing support resilient networks.
Secure control
HTTPS, SSH2.0, 802.1X, RADIUS, ACL and IP/MAC binding protect management.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100/1000Mbps PoE RJ45; 2 × 1G/2.5G/10G SFP; RS232 console |
| PoE standard | IEEE 802.3af/at; 30W maximum / 15.4W or 30W average per port |
| PoE budget variants | 120W with 5A AC supply or 250W with 6.6A AC supply |
| Switching performance | 56Gbps non-blocking; 107.14Mpps at 64 bytes; store-and-forward |
| Memory | 8K MAC table; 32M buffer |
| Fiber reach | 10G multimode 850nm up to 300m; 1.25G multimode up to 500m; single-mode 1310nm up to 40km or 1550nm up to 120km |
| Layer 2+ features | 4K VLAN, QinQ, LACP, STP/RSTP/MSTP, IGMP/MLD snooping and ERPS |
| Layer 3 / security | IPv4/IPv6 management, static/default routes, ACL, 802.1X, RADIUS, SSH2.0, HTTPS and IP/MAC/VLAN binding |
| Dimensions / installation | 270 × 180 × 45mm; desktop or 19-inch 1U cabinet |
| Environment / protection | Operating −20°C to +55°C; storage −40°C to +80°C; IP30; 4kV lightning protection |
| Warranty | 3 years; lifetime maintenance |

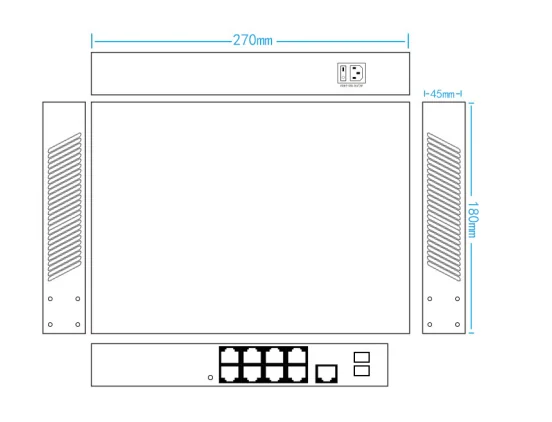

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10-Port Full Gigabit Managed PoE Switch with 2 × high-speed SFP uplinks (EW-S3910GM-AP) | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

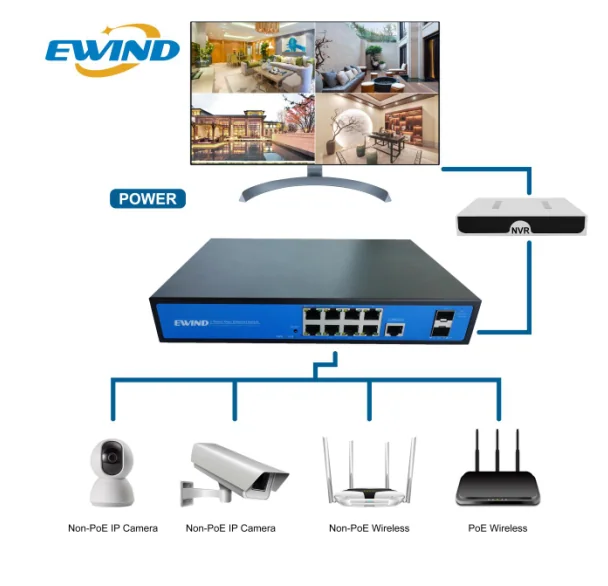

Applications
Enterprise, campus, CCTV and fiber aggregation networks with managed PoE access.
