10km optical link
1310nm single-mode transmission connects equipment over duplex fiber.
Model: EW-SFP-10G-SD1310
10G SFP+ Single-Mode Transceiver, 1310nm, 10km
- 10GBASE-LR SFP+ transceiver
- 1310nm single-mode, dual fiber
- Duplex LC; up to 10km reach
- 0 to +70°C operation; digital diagnostics
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-10G-SD1310 provides a 10GBASE-LR optical connection over duplex single-mode fiber up to 10km. The 1310nm SFP+ module includes a duplex LC connector, DFB laser, PIN receiver and digital diagnostics for host-based monitoring.
Duplex LC connection
SFP+ packaging provides separate transmit and receive LC interfaces.
Digital diagnostics
Monitor temperature, supply voltage, laser bias and optical power from the host.
| Specification | Details |
|---|---|
| Form factor / connector | SFP+ / duplex LC |
| Ethernet application | 10GBASE-LR |
| Fiber type | Single-mode, dual fiber |
| Wavelength | 1310nm nominal; 1290–1330nm range |
| Maximum reach | 10km |
| Operating temperature | 0 to +70°C |
| Supply voltage | 3.15–3.45V |
| Power dissipation | 1W maximum |
| Average transmit power | −5 to +0.5dBm |
| Receiver sensitivity | −14dBm |
| Digital diagnostics | Supported; SFF-8472 |

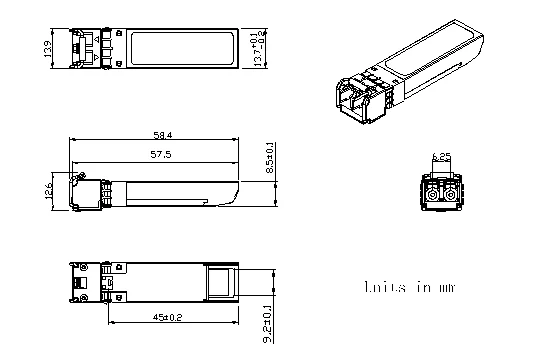

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-10G-SD1310 10G SFP+, 1310nm, 10km, duplex LC | 1 | PC |
