Single-mode link
The cable is specified for single-mode single-core or dual-core configurations depending on the ordered termination.

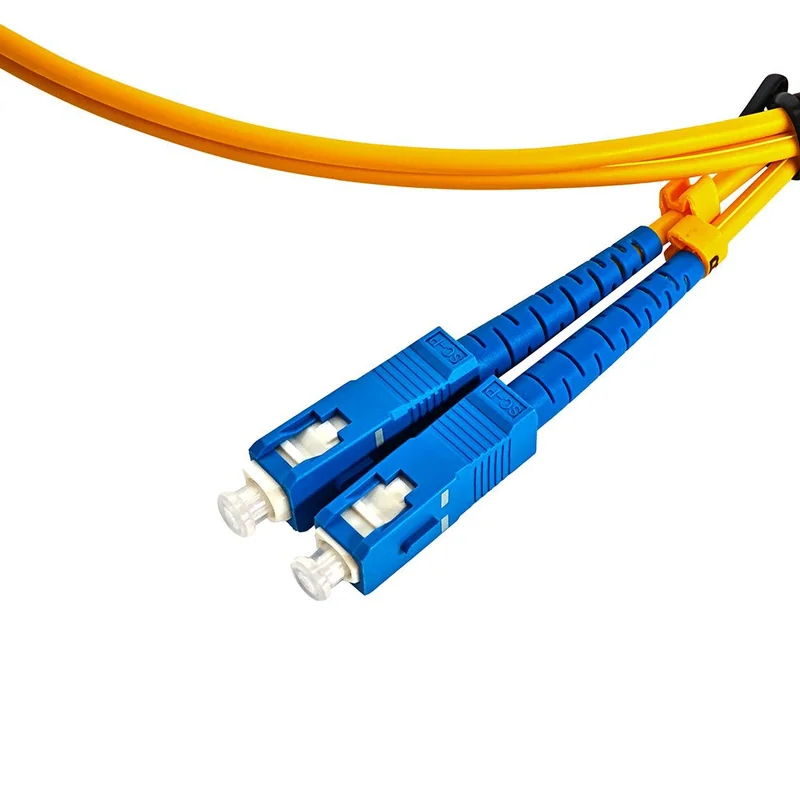

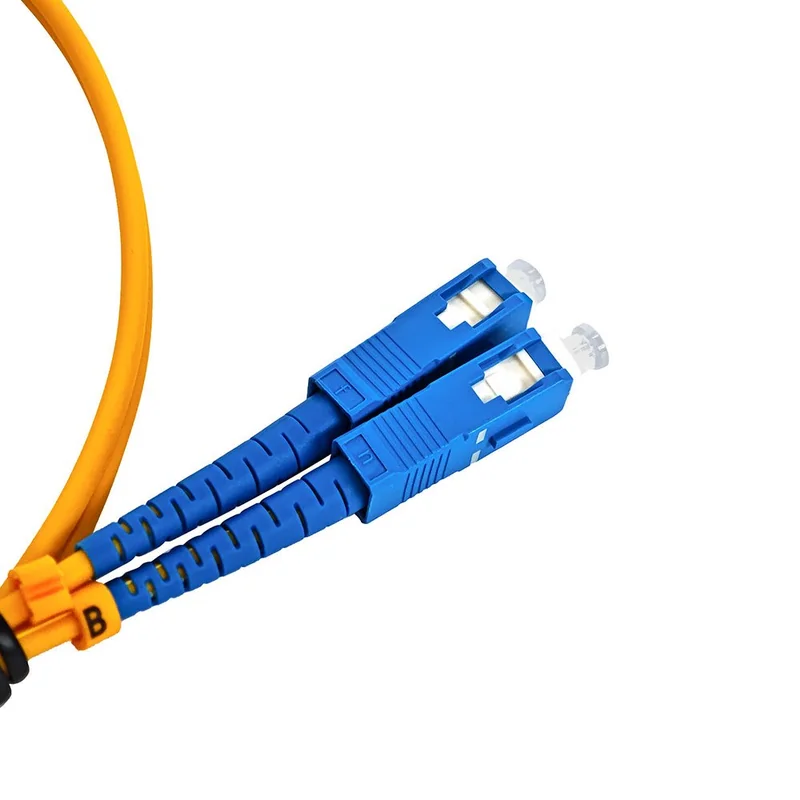

Model: EW-FBLS82-15
1.5m Single-Mode Fiber Patch Cord
- 1.5m single-mode fiber jumper
- Insertion loss ≤0.3dB · return loss ≥50dB
- SC–SC, SC–LC or LC–LC termination options
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-FBLS82-15 is a 1.5m single-mode optical fiber jumper for surveillance, computer-room and data-center links. Low insertion loss, high return loss and customizable SC/SC, SC/LC or LC/LC termination support clean cabinet interconnects.
Low-loss termination
Precision ceramic cores and polished end faces support insertion loss up to 0.3dB and return loss of at least 50dB.
Flexible deployment
SC and LC combinations fit mainstream optical equipment in monitoring, access and data-center cabinets.
| Specification | Details |
|---|---|
| Model | EW-FBLS82-15 |
| Length | 1.5m |
| Fiber mode | Single mode |
| Core configuration | Single-core or dual-core |
| Connector options | SC–SC, SC–LC or LC–LC; customizable |
| Insertion / return loss | ≤0.3dB / ≥50dB |
| Cable outer diameter | 2.0mm |
| Operating temperature | −20 to +85°C |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-FBLS82-15 single-mode fiber patch cord | 1 | PCS |
EW-FBLS82-15 Resources
PDF · Specifications · Installation · Ordering
